BroadLink RM4 Mini: Smart Home Infrared Control

BroadLink RM4 Mini

It’s great to have devices in your smart home that you can control over your network or with a smart home/IoT-designed protocol like MQTT, Z-Wave, or Zigbee. But what about the devices that don’t use these protocols? Do your radio frequency and infrared (IR) devices have to be left out of your smart home’s awesome automation and control power? Of course not! I’ve written before about how to integrate RF devices into your smart home. The BroadLink RM4 Mini gives you the ability to control IR devices over your network and can integrate with your smart home. Does it do a good job? Does it integrate well with Home Assistant?

This page contains affiliate links. If you purchase an item using an affiliate link I will receive a small commission at no cost to you. Affiliates do not influence my recommendations. Read my disclosures for more information.

What is the BroadLink RM4 Mini?

The BroadLink RM4 mini is a small IR blaster that connects to your Wi-Fi network. You can use their app to send IR signals to control IR devices like TVs, A/V receivers, set-top boxes, streaming devices, portable heaters, fans, etc. You can also use control it using Google Assistant and Alexa. It has an up-to-date IR controls database that allows you to program it for almost any device out there. And, if for some reason you can’t find your device in its database, it also can learn (copy) IR signals from remotes. Here are the specs:

BroadLink RM4 Mini IR Universal Remote Control, Smart Home Automation Wi-Fi Infrared Blaster for TV Air Conditioner STB Audio, Works with Alexa, Google Home, IFTTT$25.99
Buy on Amazon
IR blaster:360-degree blaster on top, 8m range, 38 kHz
IR database:50,000+ IR devices (constantly updated)
IR learning capability:Yes
Input Voltage/Current:5V/1A via micro USB input
Wi-Fi protocols:802.11b/g/n (2.4GHz)
Mobile App Support:
iOS 9.0/Android 4.1 and above
Dimensions (inches):1.89 x 1.89 x 1.70
Security Updates:Through April 30th, 2024 with extended support possible after that

The device comes with a micro USB to USB A cable, but no power brick. You can also purchase an additional temperature and humidity sensor that plugs into the RM4 Mini. This allows you to use the app to get the ambient temperature and humidity readings. BroadLink provides a good YouTube video that gives an example of its capabilities:

See also  YouTube TV Review Update: 1 Year Later

Additionally the RM4 Mini integrates with Home Assistant, which I’ll discuss later in this article.

BroadLink RM4 Mini set up and configuration

The setup is pretty straightforward. Download the BroadLink app and follow the instructions for device setup. Note that you will need to create an account to set up the device. After creating an account you’ll add the device by connecting it to your Wi-Fi network (stop here if you want to use your BroadLink with Home Assistant, see the next section for more details) and then naming it adding it to your account. Then you can configure the device to your heart’s content. You can add IR devices, set up timers and schedules for firing commands, learn IR codes from other remotes, and control all of your IR devices using the app. Here’s another YouTube video that walks through set up and configuration:

Home Assistant RM4 Configuration

I’m a big Home Assistant fan. It runs my smart home. I don’t buy devices anymore unless I can integrate them and control them with Home Assistant. And luckily, Home Assistant has a BroadLink integration that works with RM4 Mini. To do this, all you need to do use the BroadLink app to configure your device to connect to your Wi-Fi network and then stop configuration there. After that, you simply add the BroadLink integration in Home Assistant and your RM4 Mini should automatically be discovered. Then you can use remote.learn_command and remote.send_command to learn and send IR commands. For example, the following script will learn a code to turn on the power to your television:

script:
  learn_tv_power:
    sequence:
      - service: remote.learn_command
        target:
          entity_id: remote.bedroom
        data:
          device: television
          command: power

Remember to use the entity_id name you used for your BroadLink device. After executing this code, you have 30 seconds to go and point a remote at the RM4 Mini and press the button you want to learn. You can also execute the remote.learn_command in the services area of the Home Assistant developer tools. To send a command you can use the following code:

script:
  tv_power:
    sequence:
      - service: remote.send_command
        target:
          entity_id: remote.bedroom
        data:
          device: television
          command: power

We have some infrared faux candles in our living room. You can program them to come on and off with the remote, but we noticed they don’t keep time very well. So, I use our RM4 Mini to turn the candles on at sunset, and off late at night. Through Home Assistant’s connection to Google Assistant, we can also turn the candles on and off via voice command.

See also  Fideco USB 3.0 to SATA Hard Drive Enclosure Review

Alternatives to the RM4 Mini

The BroadLink RM4 mini isn’t the only way to control your IR devices over the network. There are many more devices. I was only interested in ones that work with Home Assistant like:

I chose to go with the RM4 Mini because I don’t need RF control. I can process and send RF signals using my Sonoff RF Bridge.

Shop related products:

Preview Product Price
BOND | Add Wifi to Ceiling Fan, Fireplace or Somfy shades | Works with Alexa, Google Home | Remote Control with App | Works with iPhone or Android BOND | Add Wifi to Ceiling Fan, Fireplace or Somfy shades | Works with Alexa, Google Home | Remote... $99.00
MOES WiFi Smart IR Remote Controller Smart Home Infrared Universal Remote Blaster,One for All Control AC TV DVD CD AUD SAT etc,Compatible with Alexa and Google Home,No Hub Required MOES WiFi Smart IR Remote Controller Smart Home Infrared Universal Remote Blaster,One for All... $18.99
Logitech Harmony Elite Remote Control, Hub and App Logitech Harmony Elite Remote Control, Hub and App $349.99 $289.99

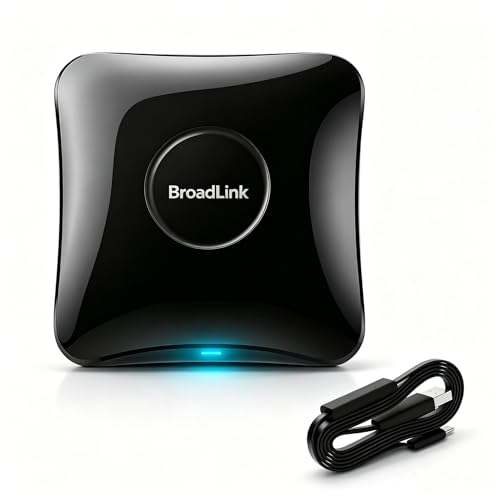

BroadLink RM4 pro Smart IR/RF Remote Control Hub with Sensor Cable-WiFi IR/RF Blaster for Smart Home Automation, TV, Curtain, Shades Remote, Works with Alexa, Google Assistant, IFTTT (RM4 pro S) BroadLink RM4 pro Smart IR/RF Remote Control Hub with Sensor Cable-WiFi IR/RF Blaster for Smart Home... $49.99
Smart WiFi-IR Remote Control Universal-Hub - IR Blaster Controller for Smart Home Automation, Air Conditioner, TV, Fan,STB,Compatible with Alexa,Google Home Smart WiFi-IR Remote Control Universal-Hub - IR Blaster Controller for Smart Home Automation, Air... $17.99
Smart IR Remote Control,All in One IR Blaster Control, Universal Infrared Remote Control for TV DVD Air Conditioner STB etc,Compatible with Alexa, Google Assistant Smart IR Remote Control,All in One IR Blaster Control, Universal Infrared Remote Control for TV DVD... $18.99
MoesGo WiFi IR Control Hub for Smart Appliances via Voice and Smart Life/Tuya App, Compatible with Amazon Echo and Google Home MoesGo WiFi IR Control Hub for Smart Appliances via Voice and Smart Life/Tuya App, Compatible with... $19.99
See also  Quick Review Of Organizr Home Lab Services Manager

Final thoughts

ProsCons
Works with Home AssistantNo 5Ghz Wi-Fi Support
Works with Google Assistant and AlexaNo RF support (Get the Pro version)
Workes consistently and well
Good IR transmission range
Large device database
Small footprint

The BroadLink RM4 Mini is a very reliable and relatively affordable way to add IR control to your smart home. The IR blaster covers a good range in a room, and learning and sending commands is easy. Also, it directly integrates with Home Assistant, which is always a big plus for me. If you’re looking for smart control of your IR devices, make sure to include the BroadLink RM4 Mini or other BroadLink products at the top of your list.
